JX2070 PDI-HV2070MG Digital Power Servo 15T, 1 Pc.

JX2070 PDI-HV2070MG Digital Power Servo 15T, 1 Pc.

Be the first to review this product

JX2070 Digital Ultra Power 73 kg.
JX-PDI-HV2070MG
8719697059919

Availability: Product is in stock

Regular Price: €59.90

Special Price: €57.90

  • Buy 2 for €54.90 each and save 6%
  • Buy 4 for €52.90 each and save 9%
Earn 570 TPS Points
OR

Payment Methods

Information

Details

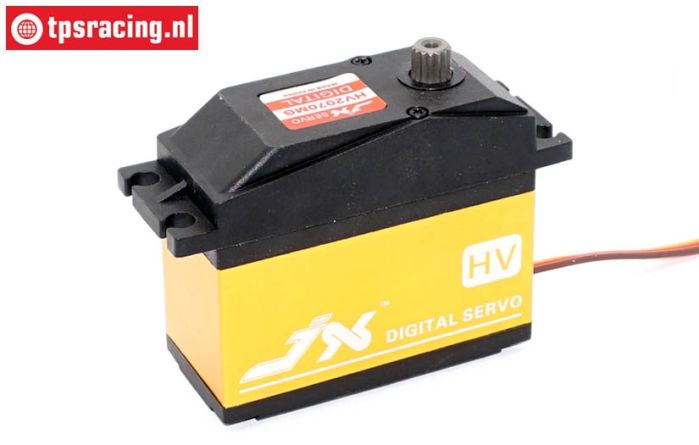

JX PDI-HV2070MG Mega High Power Servo!

Solid, fast high-voltage servo with thick metal gears, double bearings and an aluminum housing for optimal cooling and performance. This PDI-HV2070MG wil surtainly not disapoint you as lot's of happy customers already use the excellent servo.

Specification:

  • Torque at 7.4 volts: 73 kilos
  • Speed at 7.4 volts: 0.08 sec/40 degrees
  • Torque at 6.0 volts: 61 kilos
  • Speed at 6.0 volts: 0.10 sec/40 degrees
  • Dimensions: L66 x W30 x H56 mm
  • Splash waterproof
  • Ball beared
  • Special metal gears
  • Servo lever: 15 teeth
  • Servo lever thread mount: M3
  • Weight: 200 grams

All in all an excellent servo protruding above the established order, especially in combination with a strong value proposition. In terms of installation dimensions equal to the Savox S0235, S0236, S0240, S0241, S9010 and S9020 and Spektrum servos.

The voltage may vary between 6.0 and 7.4 volts, so can be used with 5 x 1.2 volt normal cells, or with 2S Li-Fe or 2S Li-Po battery. We recommend, when using older type receiver with BEC system, to power this PDI-HV2070MG servo directly from the battery. For this direct power supply we have a special splitter in our program, TPS0528.

6 Months Warranty, except on Gears

Specifications

Additional Information

Description

JX PDI-HV2070MG Mega High Power Servo!

Solid, fast high-voltage servo with thick metal gears, double bearings and an aluminum housing for optimal cooling and performance. This PDI-HV2070MG wil surtainly not disapoint you as lot's of happy customers already use the excellent servo.

Specification:

  • Torque at 7.4 volts: 73 kilos
  • Speed at 7.4 volts: 0.08 sec/40 degrees
  • Torque at 6.0 volts: 61 kilos
  • Speed at 6.0 volts: 0.10 sec/40 degrees
  • Dimensions: L66 x W30 x H56 mm
  • Splash waterproof
  • Ball beared
  • Special metal gears
  • Servo lever: 15 teeth
  • Servo lever thread mount: M3
  • Weight: 200 grams

All in all an excellent servo protruding above the established order, especially in combination with a strong value proposition. In terms of installation dimensions equal to the Savox S0235, S0236, S0240, S0241, S9010 and S9020 and Spektrum servos.

The voltage may vary between 6.0 and 7.4 volts, so can be used with 5 x 1.2 volt normal cells, or with 2S Li-Fe or 2S Li-Po battery. We recommend, when using older type receiver with BEC system, to power this PDI-HV2070MG servo directly from the battery. For this direct power supply we have a special splitter in our program, TPS0528.

6 Months Warranty, except on Gears

Weight gram 250.0000
Product Brand JX Servo
Product codeJX-PDI-HV2070MG
